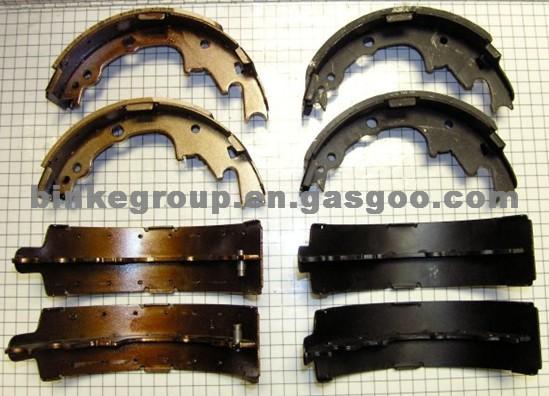

S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA

S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA
S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA
OEM No/Model:

05019536AA

Minimum Order:

200Set/Sets

Export Ratio:

91% - 100%

Quality Certificate:

TS16949

Samples:

Free

Place of Region:

CHINA

Payment Terms:

T/T

Price Terms:

FOB

Delivery Port:

QINGDAO PORT

Delivery Time:

30DAYS

Market Type:

After Market

Packing:

COLOR BOXES AND PALLETS

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA

Product Attribute:

Diameter:9inch

Width:2.5inch

Material:Carbon Steel

Application:

JEEP

Product Description:

FMSI Number - 769_2190T

Primary FMSI Spec.   OE Service
Drum Diameter - 9.000   9.000
Table Thickness -     0.080
Web Thickness - 0.165   0.163
Table Width - 2.500   2.516
Throat Dimension -
Outer Radius - 4.290

Friction Width - 2.500   2.495
Friction Thickness - 0.185   0.170
Friction Length - 7.420   7.375
No of Rivets if Riveted - None   None

Secondary
Drum Diameter - Same   Same
Table Thickness -
Web Thickness - Same   Same
Table Width - Same   Same
Throat Dimension -
Outer Radius - Same   Same

Friction Width - 2.500   2.506
Friction Thickness - 0.245   0.237
Friction Length - 8.750   8.810
No of Rivets if Riveted - None   None
Pins
Positioned to create L & R -     qty. 2
Pin O.D. -     0.313
Slot Dia -     0.254
Slot Width -     0.135
OA Length -     0.910
Web to end of pin -     0.574

S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA
S769-2190T ,JEEP BRAKE SHOE, OEM05019536AA
