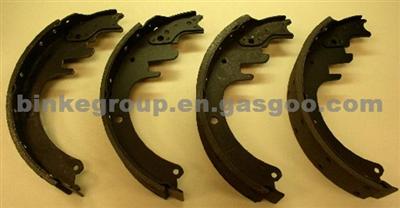

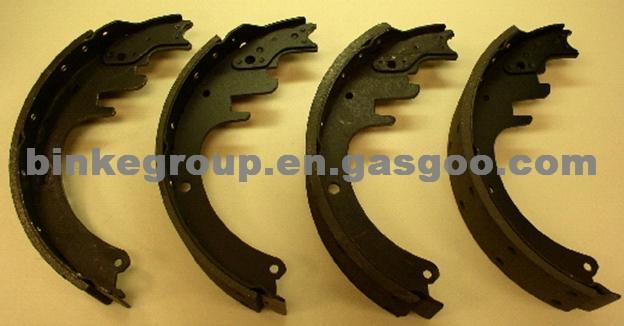

S451-2042BT Brake Shoe CHEVROLET C2500 Pickup 10/96 - 04/00

Product Name:

S451-2042BT Brake Shoe CHEVROLET C2500 Pickup 10/96 - 04/00

Product Attribute:

Application:

Buick, chevolet

Product Description:

AIMCO: AFR451R
WAGNER: ANA451R
WAGNER: PAB451R
WAGNER: PAB451RNA
AIMCO: PAF451R Size:
Primary FMSI Spec.
Drum Diameter - 13.000
Table Thickness - -
Web Thickness - 0.184
Table Width - 2.500
Throat Dimension - -
Outer Radius - -

Friction Width - 2.450
Friction Thickness - 0.250
Friction Length - 12.730
No of Rivets if Riveted - 12

Secondary
Drum Diameter - Same
Table Thickness - -
Web Thickness - Same
Table Width - Same
Throat Dimension - -
Outer Radius - -

Friction Width - 2.450
Friction Thickness - 0.375
Friction Length - 13.690
No of Rivets if Riveted - 14
